Description

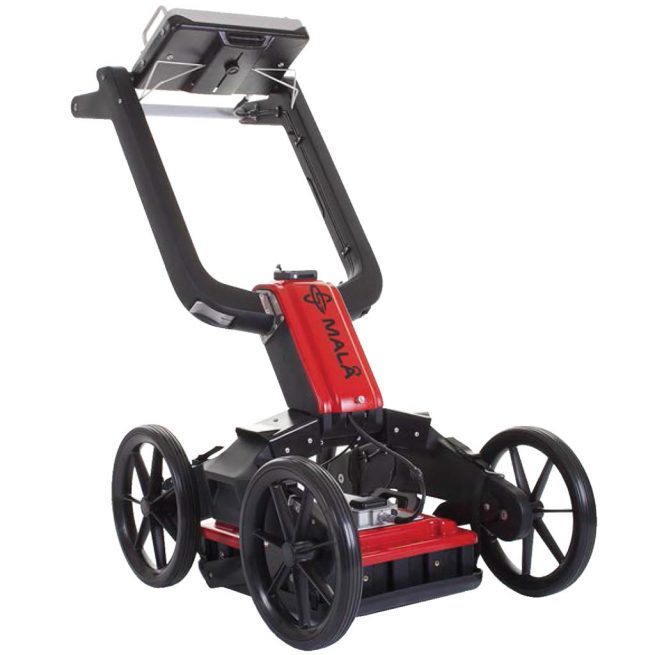

Buried utilities are assets that need protection, so it is vital to gather precise and reliable information about the location and depth of buried infrastructure. MALÅ EL Pro offers the most comprehensive, non-destructive solutions for obtaining subsurface information about metallic and non-metallic utilities.
Based on real-time sampling technology, MALÅ EL Pro is faster, offers higher data resolution and significantly better penetration depth compared to traditional GPR technology. It can export 32 bit HDR data to stand-alone software and the solution is supplied with MALÅ Object Mapper and GPS Mapper software.
With its unique level of data precision and data resolution, MALÅ EL Pro is the professional choice for utility mapping.
Features & Advantages
- Outstanding data quality
- Easy-to-use, foldable all-in-one unit
- Fast data acquisition
- Built-in DGPS for improved positioning
- Data export and post-processing software
- Exceptional detection capabilities
Technical Specifications – EL Pro Controller
- Processor: 1.6 GHz Intel Atom
- Display: 1024 x 768
- Memory: 8 GB compact Flash memory
- Data output resolution: 32 bit
- Comms: Ethernet, USB 2.0, RS232 (serial)
- GPS: Integrated support for built-in GPS, or external GPS via USB/serial port (NMEA 0183 protocol)
- Power supply: Any external 10-15 V DC source.
- Charger: Internal charger. Unit can also be charged from any external 12 – 15 V DC source.
- Power consumption: 3 – 2.0 A
- Operating time: 8 – 14 h (depending on number of external batteries)
- Dimensions: 430 x 360 x 180, including handles
- Weight: 5 kg
- Operating temp: -20 °C to +50 °C or 0 °F to 120 °F
- Environmental: IP65
Technical Specifications – EL Pro Antenna
- Technology: MALÅ Semi-Real-Time pat pending
- Antenna center freq.: 450 MHz
- SNR: > – 101 dB
- Significant/useful number of bits: > 16 bit
- Scans/second: > 770, time window 300 nS
- Survey speed: 275 [km/h] point distance 10 cm
- Time window: 300 ns
- Operating time: 5 h
- Bandwidth: >120 %, fractional, -10 dB
- Positioning: Built-in DGPS, external GPS, wheel encoder
- Power supply: Interchangeable 12 V Li-Ion battery or ext. 12 V DC source
- Power consumption: 3 A
- Mode: Wheel, time or manual
- Dimensions: 430 x 360 x 180 mm
- Weight: 5 kg
- Operating temp: -20 °C to +50 °C or 0 °F to 120 °F
- Environmental: IP65
Technical Specifications – EL Pro Cart
- Dimensions: (folded for transport) 820 x 560 x 400 (L x W x H)
- Dimensions: (when in use) 1100 x 560 x 1000 (L x W x H)
- Weight: 13 kg
- Battery bay/compartment: Fits four 12 V Li-Ion
Accessories
- Rough Terrain Cart (RTC)
- Extra battery options
