Description
Available in Single Source, Dual Source, or Low Frequency Source configurations
Typical Applications:
- Shallow Gas Hazard Surveys
- Transition Zone Surveys
- Offshore Wind Turbine and Dam Site Surveys
- Bedrock Investigation
- Cross-River Surveys for Bridge Construction
- Pipeline and Construction Surveys
- Geotechnical Site Investigation
- Coastal Engineering
- Ability to correlate seismic data with land based surveys
Features/Benefits
- Wide-band 70-1700 Hz (standard) or 20-1700 Hz (LF) pulses provide sub-bottom penetration through many sediment types
- Rugged, lightweight transducer platform provides stable operation in adverse sea-state conditions
- Repeatable Shot-to-Shot Phase and Amplitude Wavelet Correlation > 0.96

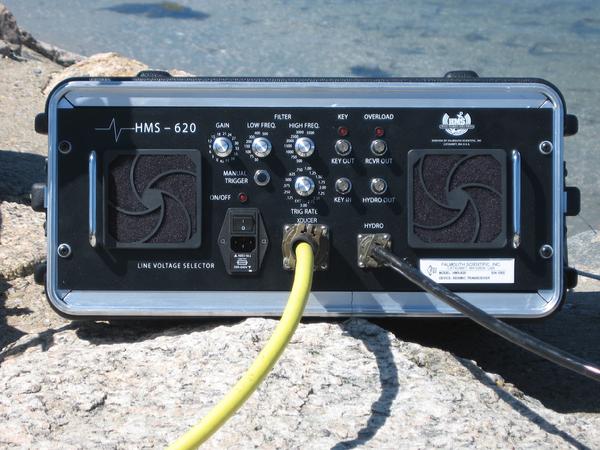

- Flexible portable transceiver unit optimizes system for a wide range of sediments
- User-selectable trigger or external trigger
- Multiple Sources can be synchronized to a common trigger without need for external timing control
- Low-noise pre-amp with high/low pass filters and gain control
- Portable power supply operates from 110 or 220 VAC of less than 1 KWatt for single, 2 KWatt for dual or LF
- NO HIGH VOLTAGE SOURCE NEEDED
- Air Cavity is Totally Sealed
- NO AIR COMPRESSOR NEEDED
- Oil-filled hydrophone streamer cable incorporates a 7-meter multi-element active section (35-meter deactivation switch)
- Single, Dual, or LF Transducer Systems
